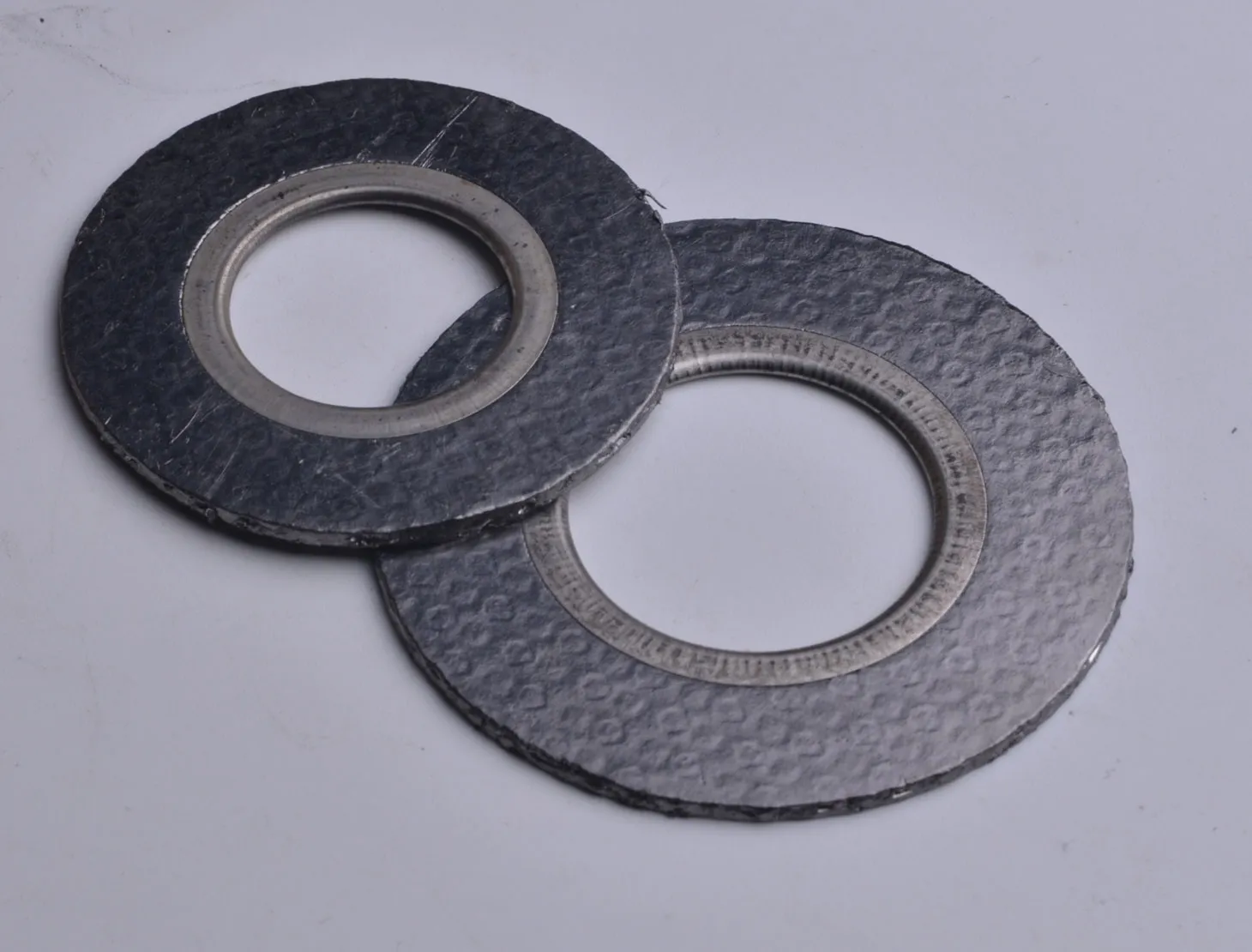

Metal Insert Graphite gasket

Metal Insert Graphite gasket

XINSEN-GA
  • Reinforced graphite gasket is an improved semi-metal gasket, which is the compound of expanded graphite. Its performance is excellent in corrosion proof, high temperature resistant, elastic, and strength, It is suitable for pipe, valve, pump, pressure container, heat exchanger, and condensate. To satisfy special requirements such as water gauges, punched flanges or cylinders of diesel engines, this kind of gasket could be made into special shapes.

INQUIRY NOW
  • Product Type:XINSEN-GA

    Features:

    Reinforced graphite gasket is an improved semi-metal gasket, which is the compound of expanded graphite. Its performance is excellent in corrosion proof, high temperature resistant, elastic, and strength, It is suitable for pipe, valve, pump, pressure container, heat exchanger, and condensate. To satisfy special requirements such as water gauges, punched flanges or cylinders of diesel engines, this kind of gasket could be made into special shapes.

    Thickness options: 0.5MM-10MM

    Operating conditions:

    PH= 0-14,

    Temperature: -200~+600oC

    Pressure=10MPa

    Metal material: Carbon Steel, ss304(L),ss316(L),ss321,Alloy 825,Monel 400, Inconel 625 etc.

    Standard: ASME 16.21,EN-1514-1,HG/T 20606-2009
